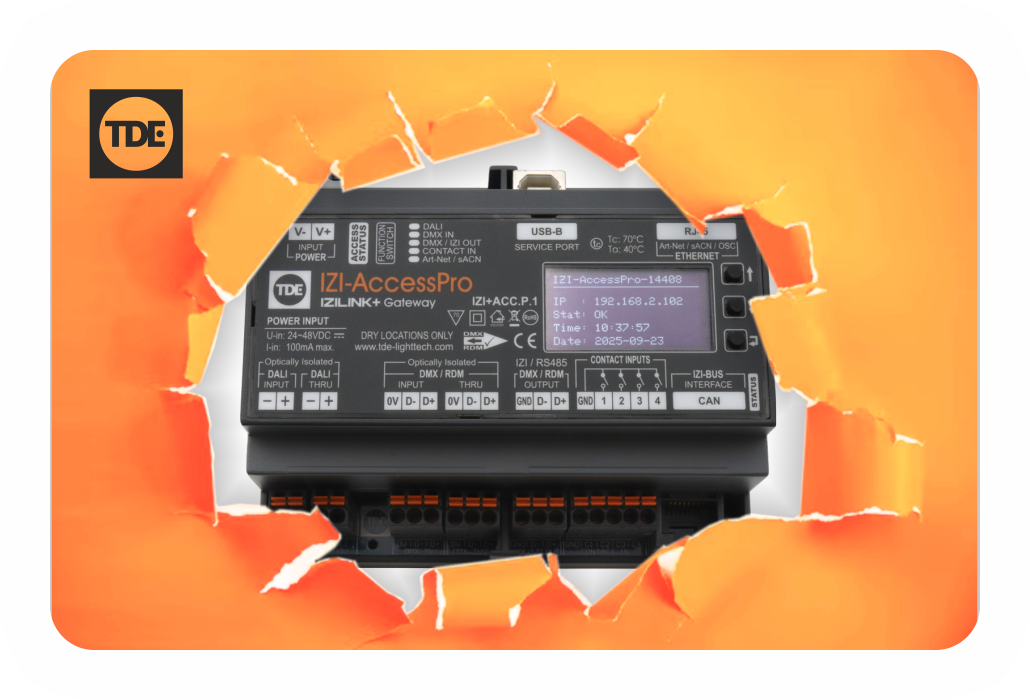

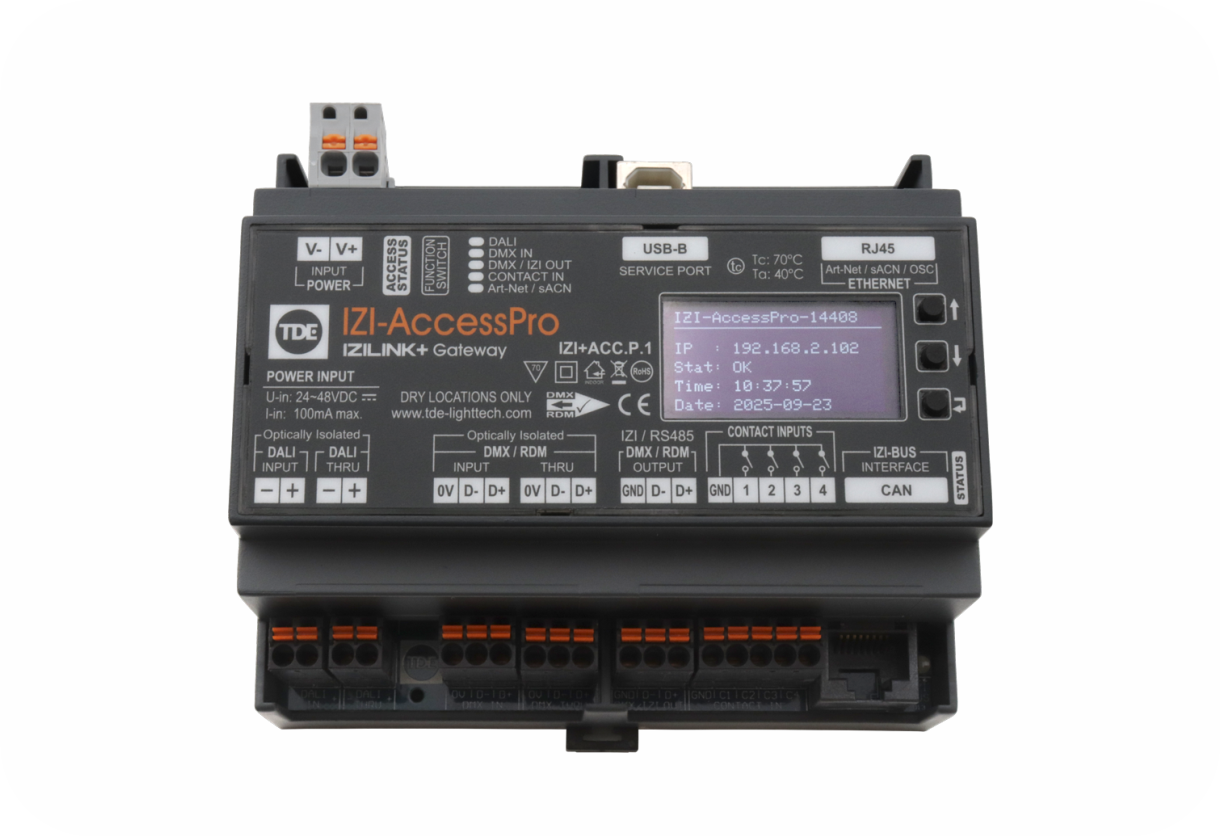

IZI-AccessPro

IZI-AccessPro – Smarter, Stronger, and Ready for the Future

The IZI-AccessPro is the next-generation upgrade to the popular IZI-Access. Just like its predecessor, it features one DMX input, one DMX output, and one DMX thru, along with full support for sACN, Art-Net, OSC, and DALI. It also keeps the four contact inputs that many users rely on.

But the Pro takes everything further. It can receive and transmit two universes, adds full RDM support over DMX and Art-Net, and includes a bright display with three buttons for easy monitoring, configuration, and testing. With its built-in real-time clock, the IZI-AccessPro can run scheduled tasks, and it now supports powerful features like macros, conditions, and timers. Even the IZI-Touch touchscreen control interface is exclusively supported by the Pro.

Designed for advanced installations and total flexibility, the IZI-AccessPro sets a new standard in intelligent system control.

Kenmerken

  • Next-Generation light controller
  • 2 Universe output - 1024 channels
  • Art-Net / sACN & OSC via Ethernet
  • RDM support
  • DMX-RDM input, Thru & output
  • IZI-Link+ IZI-BUS interface
  • OLED display with real-time system info
  • Realtime Clock with PowerCap & battery
  • Programmable scheduler
  • Programmable Macro's and rules
  • Programmable Soft-Patches
  • Programmable Scenes, Sequences, timers
  • 6 individual playbacks
  • IZI-Touch wall panel support (up to 4)
  • Web interface
  • Programmable contact inputs
  • IZI-Supervisor software suite (Windows)

Technische specificaties

Voeding

Power24V ~ 48VDC
Current100mA maximum
Power consumption2.4 Watt maximum

Bediening

Control inputsEthernet, DMX-RDM, DALI-input, USB-B and 4 contact closures
Control outputsDMX-RDM Thru, DMX / RS485 / IZI-Link / IZI-BUS (CAN)
ProtocolsArt-Net, sACN, OSC, DMX-RDM, DALI, IZI-Link + IZI-Link+

Materiaal

HousingDIN-rail (6 module width)
Power input2-pole WAGO 2231-102
DALI In- & output2-pole WAGO 714-102
DMX-RDM input / thru & output3-pole WAGO 714-103
Contact closure5-pole WAGO 714-105
